| Brand Name : | INNODA |
| Model Number : | IND150M |
| Certification : | CE,RoHS, FCC |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability : | 8000 pieces per month |
| Delivery Time : | 7working days upon receive the payment |
Stainless Steel Front IP66 Capacitive Touch Monitor 15-Inch Industrial Panel
Features
- 15″ XGA TFT Industrial Grade lcd panel
- Multi Touch Screen Standard (Capacitive or Resistive or Tempered
glass)
- 250 Nits of Brightness, sunlight readable optional
- VGA,DVI-I, HDMI inputs
- Front IP66 waterproof
- 1.5mm durable stainless steel enclosure
- Widel voltage 8-36V DC
Configurations
| LCD Panel Characteristics | Screen Size | 15-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
I/O Interface | USB | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | Front IP66 waterproof | |||
| 24V wide voltage | ||||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Stainless Steell(Aluminum/metal for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

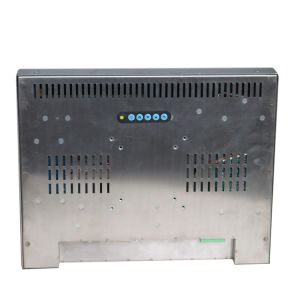

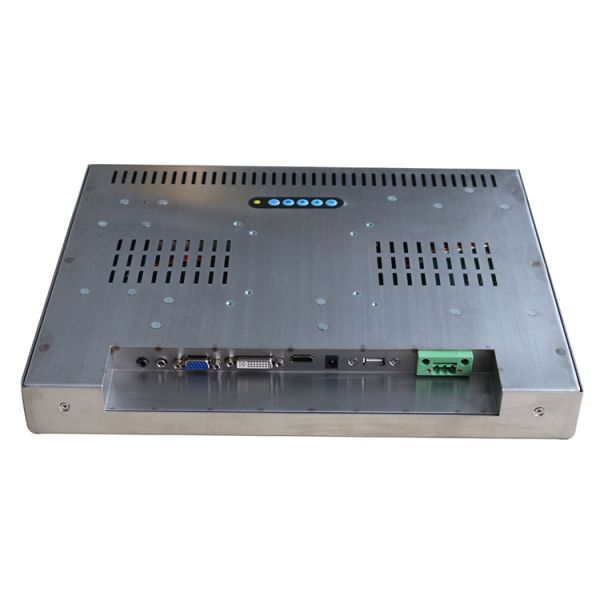

Detailed Image



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor
filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded
computer, lcd monitor, waterproof computer, sunlight readable
pc/monitor, android tablet...etc. which have excellent work
performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food
industry, boat...etc

|
