    3mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel

    Ask Lasest Price
    Brand Name : INNODA
    Model Number : IND170PC
    Certification : CE,RoHS, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
    Supply Ability : 5000 pieces per month
    Delivery Time : 12working days upon receive the payment
    • Product Details
    • Company Profile

    3mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel

    3mm Thin Aluminum Bezel Embedded Touch Panel Pc With Quad-Core Intel J1900​

    Features
    1. Aluminum bezel Embedded Touch Panel Pc

    2. 10points capacitive touchscreen / resistive touch / IR touch for choose

    3. Quad-core Intel J1900 / Intel I3 / I5 / I7 processor

    4. Low power consumption

    5. High environmental performance and reliability

    6. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.


    Configuration

    Processor SystemCPUIntel Quad-core J1900/2.0GHz
    Memory4GB-8GB
    Storage64G SSD(up to 1TB)
    Operation SystemWindows 7/8/10 OS(trial version)
    LCD Panel CharacteristicsScreen Size17’’ Lcd Panel
    Touchscreen TypeCapacitive touch screen / Resistive touch option
    Resolution1280(H)x1024(V)
    Aspect Ratio4:3
    Brightness250cd/m2
    Contrast Ratio500:1
    Response Time10 msec
    I/O InterfaceCOM1*RS232(RS485/RS422 optional)
    USB4xUSB2.0
    LAN1xRJ45, 10/100/1000 Mbps
    HDMI1xHDMI
    VGA1xVGA
    FunctionTouch
    OptionalRFID/ NFC card reader
    8-36V wide range voltage
    Brightness control button
    1000nits High Brightness for sunlight readable
    Front waterproof / Full sealed Waterproof
    Power SupplySingle 12 V DC power input, Max 18W Power Consumption
    Accessories8A Power Adapter with cable
    Working Temperature-20~70° C
    Other InformationMaterialAluminum+Metal frame
    ColorBlack/Silver/White
    MountingVESA mount / Embedded
    CertificatesCE/ RoHS / FCC

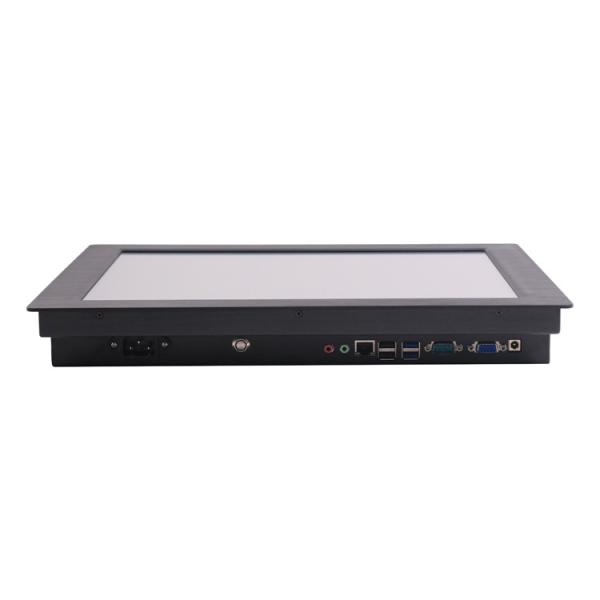

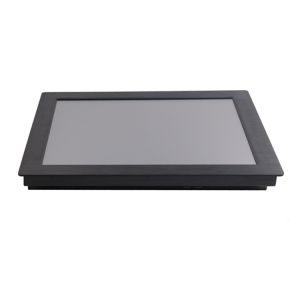

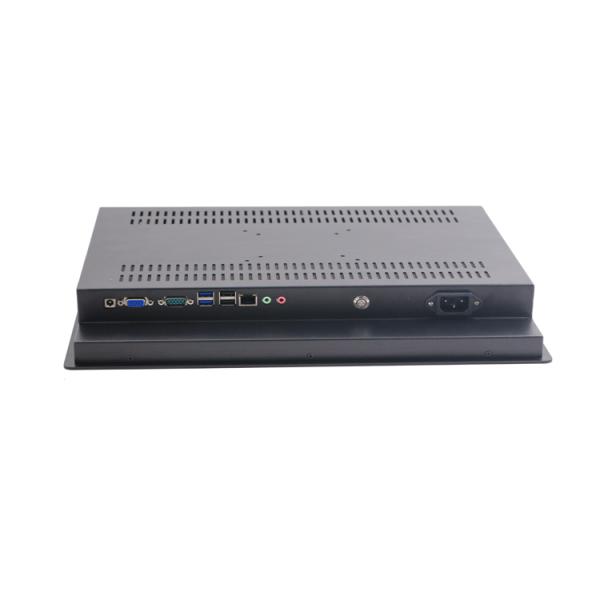

    Detailed Image

    Industrial PC Applications
    Industrial plant
    Oil, Gas and Chemicals Industrial
    Animal Feed Production Facility
    CNC Control Panel
    Rugged Environment Application
    Food & Beverage Processing Instrument


    Our Advantage
    1. Experience

    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least

    13years experience.
    2. Wide products line
    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,

    sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
    3. Customization functions
    It offers rich of interface to meet csutomers needs.
    4.Widely useage environment
    INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

    5. No MOQ limited

    We can provide sample first to test it for the big project.
